MST 160CR
The powerful 16-ton dumper
with 360° rotation
16,000 Kg
Maximum Payload
7.95 m³
Heaped capacity
13.1 km/h
Speed
MST 160CR
The powerful
16-ton dumper with 360° rotation
16,000 Kg
Maximum Payload
7.95 m³
Heaped load capacity
13.1 km/h
Speed
Efficient, safe, and Highly maneuverable
The MST160CR for confined jobsites, precise lateral unloading and high payloads in dynamic operations.
The Morooka MST160CR is our 16-tonne dumper with a 360° rotating upper structure, offering maximum flexibility for the most demanding jobsite operations. Thanks to the rotating upper structure, you can unload and reverse without turning the machine. This makes manoeuvring in confined spaces considerably easier and allows precise lateral unloading, placing material exactly where it is needed.
The MST160CR is equipped with a heated and air-conditioned ROPS/FOPS certified cabin, a 360° panoramic camera, a digital display, an overload protection function and an intuitive joystick control.
High payload
Reliable transport of even the heaviest materials, combined with safe and controlled handling thanks to the overload protection function.
360° Rotation
The 360° rotating upper structure allows precise material unloading without turning the machine — efficient and time-saving on every jobsite.
Low ground pressure
The wide support surface protects paths, grounds and sensitive areas — ideal for operations in natural environments, along waterways or in forestry.
Precise joystick control
Smooth acceleration, precise manoeuvring and ergonomic comfort for maximum productivity on the jobsite.
MST160CR
FACTS
16 t payload – Caterpillar C7.1 Stage V – 360° rotation – 360° bird-view camera – air conditioning – Hardox reinforced bucket – made in Japan
Joystick control system
The Morooka MST160CR is operated with ergonomic joysticks that not only provides precise control of the machine, but also significantly improves operator comfort compared to the classic dual lever control.
Safety
Optimal visibility is ensured by the lowered engine cover and the standard 360° panoramic camera, minimising blind spots. The ROPS/FOPS certified structure further enhances operator safety. The seat and left joystick lever are equipped with a locking system that prevents accidental inputs, ensuring safe and confident operation in all conditions.

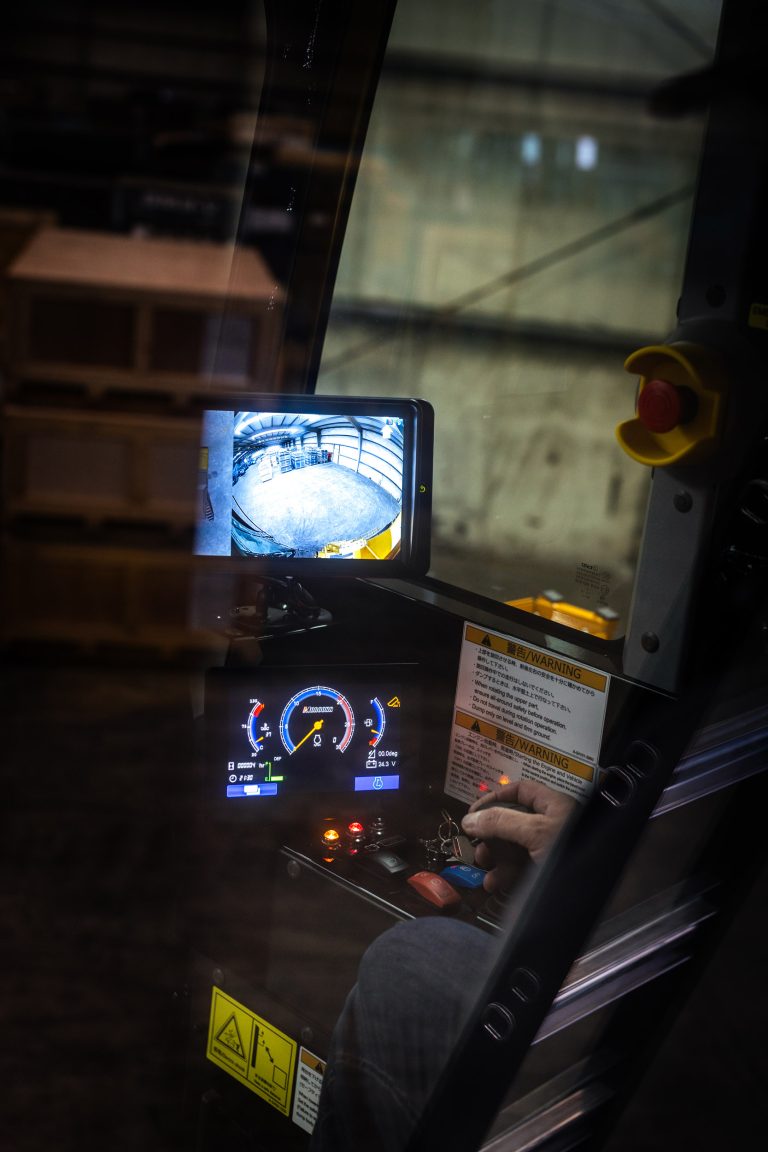

Warning Light and Monitor Display
The warning lights and the LCD monitor are centrally located on the right side of the driver’s seat. Various vehicle statuses, such as remaining fuel level, battery voltage, engine speed, warning lights, etc., can now be easily checked. Additionally, the newly installed 360-degree camera facilitates monitoring the front, rear, left, and right sides of the vehicle.
Fuel savings and reduced emissions
The automatic engine speed reduction has been integrated to optimise fuel consumption and limit environmental impact.
When the machine is inactive — stationary or awaiting operator input — the system activates automatically and sets the engine to idle, contributing to reduced fuel consumption, lower operating costs and decreased emissions.
Equipped with an overload protection function
When the machine is stationary, the operator can press the “Load measuring mode” button on the joystick: the dump body rises automatically to a preset position and the load is estimated based on the hydraulic pressure exerted on the tipping cylinder. If the load does not exceed the set weight limit, “OK” is displayed on the screen. If the limit is exceeded, “OVER” and the approximate value are displayed.
This function helps the operator avoid overloading the machine and contributes to extending its service life.
Emissions Standards
The Caterpillar C7.1 engine, compliant with EPA Tier 4 Final and EU Stage V emission standards, significantly reduces particulate matter (PM) and nitrogen oxide (NOx) emissions, actively contributing to environmental protection..
TECHNICAL SPECIFICATIONS
MST160CR
Maximum Payload
16,000 kg
Operating weight
18,300 kg
Load capacity (Struck/Heaped)
5.75 / 7.95 m³
Speed (fast/slow)
13.1 / 7.9 km/h
Ground Pressure (unloaded/loaded)
36.3 / 68.0 kPa
Engine Model
Caterpillar C7.1 Tier 4 final / Stage 5
Nominal Power
300 HP (225 kW) / 2,200 rpm
Vehicle Length
6,210 mm
Vehicle Width
2,980 mm
Vehicle Height
3,205 mm
Ground Clearance
570 mm
